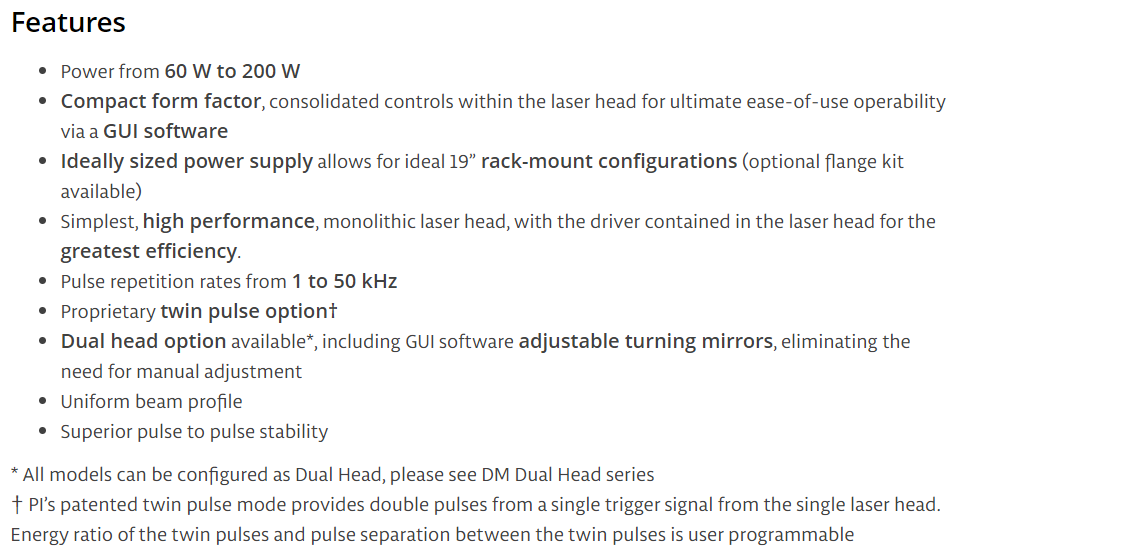

Owing to its intra-cavity patented technologies, the DMX YAG Green Series diode pumped laser has the simplest, most efficient design in a monolithic platform, while producing high power at 532 nm (up to 200W from single head and up to 400W from dual head) at kHz repetition rates. In addition to its simple, efficient design, the outstanding thermal management allows the user to change repetition rate from 1 to 30kHz on lower power models and 1 to 50kHz on higher power models as desired. It is the best choice for high repetition rate pumping Ti:sapphire laser amplifiers and Particle Image Velocimetry (PIV) applications. The single head DMX lasers offer a dual pulse feature and have proprietary driving electronics to control pulse separation and delay. In addition, the laser can be configured in the dual head option for sub μs pulse separations and even higher output powers.
